makeCartCircle

Create a 2D Cartesian circle or arc.

Syntax

circle = makeCartCircle(radius, num_points)
circle = makeCartCircle(radius, num_points, center_pos)
circle = makeCartCircle(radius, num_points, center_pos, arc_angle)
circle = makeCartCircle(radius, num_points, center_pos, arc_angle, plot_circle)

Description

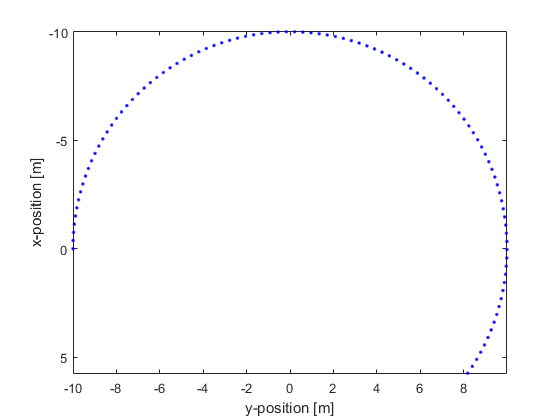

makeCartCircle creates a 2 x num_points array of the Cartesian coordinates of points evenly distributed over a circle or arc (if arc_angle is given). The plot that is displayed after calling makeCartCircle(10, 100, [0,0], (215/180)*pi, true); is given below.

Inputs

radius	circle radius [m]
num_points	number of points on the circle

Optional Inputs

center_pos	[x, y] position of the circle center [m] (default = [0, 0])
arc_angle	arc angle for incomplete circle [radians] (default = 2*pi)
plot_circle	Boolean controlling whether the Cartesian points are plotted using plot (default = false)

Outputs

circle

2 x num_points array of Cartesian points

Examples

• Homogenous Propagation Medium
• Loading External Image Maps
• Heterogeneous Propagation Medium
• Saving Movie Files
• Defining A Gaussian Sensor Frequency Response
• Comparison Of Modelling Functions
• Modelling Sensor Directivity in 2D
• Modelling Sensor Directivity in 3D
• 2D Time Reversal For A Circular Sensor
• Image Reconstruction With Compensation For Acoustic Absorption
• Controlling The Absorbing Boundary Layer
• Optimising k-Wave Performance

See Also

cart2grid, makeCartSphere, makeCircle
